Name: Guide Markers

Display Field: ASSETNUM

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: This dataset contains key attribute fields describing each guide marker asset. Notable/Unique fields to Guide Markers include:CW_ASSETID – Our Active Unique identifiers associated with each asset utilized in our Trimble Unity Maintain Asset Management system.ASSETNUM– Our legacy unique identifiers from our former Asset Management System MMSSTATUS– Indicates the operational status of the guide marker (e.g., Active, Inactive, Proposed).DESCRIPTION– A composite of the asset’s location description, including the street name, the distance of feet and direction from the nearest Mile Marker, and the direction the guide markers are facing. STREET – The street name the guide marker is located on.CROSSING– Name of the Mile Marker post nearest to the guide marker asset.GM_QTY – The quantity of guide marker posts per the section of assets.GM_SPACING – The spacing in Feet between each individual guide marker within that section of assets.GM_POST_TYPE – Includes currently two main types of Guide Markers, GP (Ground-mounted Post) and PPD (Permanent Plastic Delineator/Post)GM_GUIDE_TYPE – The model type of the guide marker post.Last updated or update frequency: 2026Loaded May 2026 per Ticket #256382

Copyright Text: Name: Haig Minasian Organization: Los Angeles County Public Works, Operational Services Division Position: Senior GIS Analyst Role: Point of Contact Email: hminasian@dpw.lacounty.gov Address: 900 s Fremont Ave City: Alhambra State: CA Postal Code: 91803 Phone: (626) 458-7104

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 6507039.93884154
YMin: 1922946.66184232
XMax: 6539683.94543448
YMax: 1998884.19699267
Spatial Reference: 102645  (2229)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [29, 140, 88, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• ASSETNUM ( type: esriFieldTypeString, alias: MMS Asset ID, length: 50 )
• CW_ASSETID ( type: esriFieldTypeString, alias: TUMS Asset ID, length: 50 )
• STATUS ( type: esriFieldTypeString, alias: Status, length: 25 , Coded Values: [UNKNOWN: UNKNOWN] , [ACTIVE: ACTIVE] , [ABANDONED: ABANDONED] , ...3 more... )
• DESCRIPTION ( type: esriFieldTypeString, alias: Description, length: 500 )
• STREET ( type: esriFieldTypeString, alias: Street, length: 250 )
• CROSSING ( type: esriFieldTypeString, alias: Crossing, length: 25 )
• GM_QTY ( type: esriFieldTypeInteger, alias: Quantity )
• GM_SPACING ( type: esriFieldTypeInteger, alias: Spacing )
• GM_POST_TYPE ( type: esriFieldTypeString, alias: Post Type, length: 25 , Coded Values: [GP: GP] , [PPD: PPD] )
• GM_GUIDE_TYPE ( type: esriFieldTypeString, alias: Guide Type, length: 25 )
• JURISCODE ( type: esriFieldTypeString, alias: Jurisdiction Code, length: 25 , Coded Values: [116: 116] , [117: 117] , [118: 118] , ...27 more... )
• CITY ( type: esriFieldTypeString, alias: City, length: 200 )
• GLOBALID ( type: esriFieldTypeGlobalID, alias: GLOBALID, length: 38 )
• CREATED_USER ( type: esriFieldTypeString, alias: CREATED_USER, length: 255 )
• CREATED_DATE ( type: esriFieldTypeDate, alias: CREATED_DATE, length: 8 )
• LAST_EDITED_USER ( type: esriFieldTypeString, alias: LAST_EDITED_USER, length: 255 )
• LAST_EDITED_DATE ( type: esriFieldTypeDate, alias: LAST_EDITED_DATE, length: 8 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.LEN ( type: esriFieldTypeDouble, alias: SHAPE.LEN )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

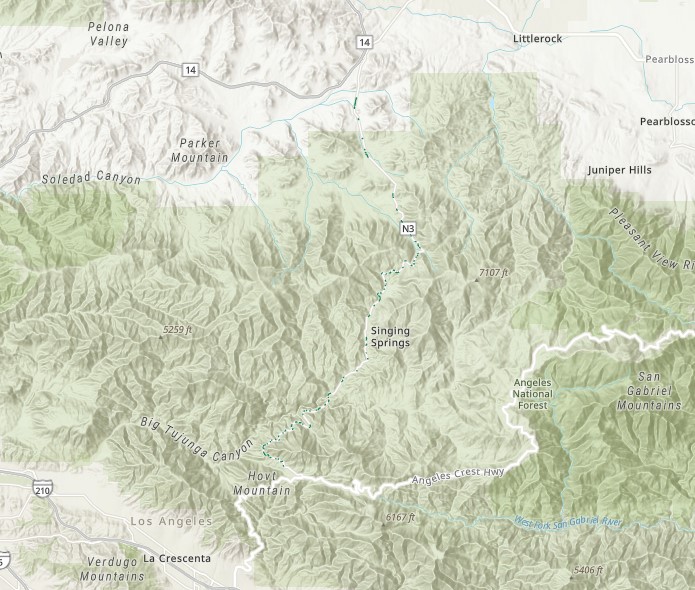

  Iteminfo   Thumbnail   Metadata
