Name: Facility AC

Display Field: FAC_NAME

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: This Layer represents Air Conditioning units within DPW facilities. Primary use of this layer is for asset management and work order tracking within DPW’s new Asset Management System (Trimble Unity Maintain). Data was extracted from existing asset data contained in LA County DPW’s outgoing Maintenance Management System. Data was then updated and verified by the Building Crafts Superintendent and Senior Civil Engineer from the Operational Services Division.Notable attribute fields include:CW_ASSETID: Active Unique identifiers for each asset, utilized in Trimble Unity Maintain Asset Management System.FAC_NAME: Represents which facility the asset is located inSTATUS: Represents working status of the feature.ACTIVE: This value is used for features currently active and in use.ABANDONED: This value is used for features no longer in use and now abandonedIN CONSTRUCTION: This value is used for approved features currently in constructionINACTIVE: This value is used for features that are currently inactive and unusedPROPOSED: This value is used for features that are proposed but not yet approved for constructionUNKNOWN: Status of the feature is currently unknown.DESCRIPTION: Describes which yard and building the feature is locatedHEATTYP: Type of heating system used in unitREFRIGTYP: Type of refrigerant used in unitAC_TYPE: Type of system the unit uses (Package Unit/Split System/Ductless)Last updated or update frequency: 2026Loaded May 2026 per Ticket #256137

Copyright Text: Name: Nathan Lee Organization: Los Angeles County Public Works, Operational Services Division Position: Engineering Aid III Role: Point of Contact Email: nlee@dpw.lacounty.gov Address: 1525 Alcazar St City: Los Angeles State: CA Postal Code: 90033 Phone: (626)458-1700

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 6307488.78640224
YMin: 1732651.77553158
XMax: 6657280.48511106
YMax: 2112894.10528395
Spatial Reference: 102645  (2229)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: STATUS
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
Default Label: <all other values>
UniqueValueInfos:
• Value: ABANDONED
  Label: ABANDONED
  Description: N/A
  Symbol:

• Value: ACTIVE
  Label: ACTIVE
  Description: N/A
  Symbol:

• Value: IN CONSTRUCTION
  Label: IN CONSTRUCTION
  Description: N/A
  Symbol:

• Value: INACTIVE
  Label: INACTIVE
  Description: N/A
  Symbol:

• Value: PROPROPOSED
  Label: PROPOSED
  Description: N/A
  Symbol:

• Value: UNKNOWN
  Label: UNKNOWN
  Description: N/A
  Symbol:

Transparency: 0
Labeling Info:
Label Placement: esriServerPointLabelPlacementAboveRight
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [255, 255, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 10
Font Family: Tahoma
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• CW_ASSETID ( type: esriFieldTypeString, alias: TUMS Asset ID, length: 50 )
• MMS_ASSETID ( type: esriFieldTypeString, alias: MMS Asset ID, length: 50 )
• STATUS ( type: esriFieldTypeString, alias: Status, length: 255 , Coded Values: [UNKNOWN: UNKNOWN] , [ACTIVE: ACTIVE] , [ABANDONED: ABANDONED] , ...3 more... )
• DESCRIPTION ( type: esriFieldTypeString, alias: Description, length: 1000 )
• REMARKS ( type: esriFieldTypeString, alias: Remarks, length: 1000 )
• FAC_NAME ( type: esriFieldTypeString, alias: Facility Name, length: 255 )
• BLDG_NO ( type: esriFieldTypeString, alias: Building Number, length: 255 )
• SERVAREA ( type: esriFieldTypeString, alias: Served Area, length: 255 )
• TONCOOLCAP ( type: esriFieldTypeString, alias: Tonnage/Cooling Capacity, length: 255 )
• HEATTYP ( type: esriFieldTypeString, alias: Heating Type, length: 50 , Coded Values: [Infrared Radiant Heater: Infrared Radiant Heater] , [Forced Air Gas Heater: Forced Air Gas Heater] , [Heat Pump - Ductless: Heat Pump - Ductless] , ...4 more... )
• REFRIGTYP ( type: esriFieldTypeString, alias: Refrigerant Type, length: 50 , Coded Values: [R22: R22] , [R410A: R410A] , [R32: R32] , ...1 more... )
• MANUDATE ( type: esriFieldTypeDate, alias: Manufacture Date, length: 8 )
• INSTALDATE ( type: esriFieldTypeDate, alias: Installation Date, length: 8 )
• USELIFE ( type: esriFieldTypeString, alias: Expected Useful Life, length: 255 )
• LASTSERVDATE ( type: esriFieldTypeDate, alias: Last Service Date, length: 8 )
• NEXTSERVDATE ( type: esriFieldTypeDate, alias: Next Service Date, length: 8 )
• MAINTFREQ ( type: esriFieldTypeString, alias: Maintenance Frequency, length: 255 )
• LOCKTAGREQ ( type: esriFieldTypeString, alias: Lockout/Tagout Required?, length: 5 , Coded Values: [Yes: Yes] , [No: No] )
• MD ( type: esriFieldTypeString, alias: MD, length: 10 )
• RD ( type: esriFieldTypeString, alias: RD, length: 10 )
• EQUIPMENT ( type: esriFieldTypeString, alias: Equipment, length: 255 )
• ADDRESS ( type: esriFieldTypeString, alias: Address, length: 100 )
• CITY ( type: esriFieldTypeString, alias: City, length: 50 )
• SUB_AREA ( type: esriFieldTypeString, alias: Sub Area, length: 100 )
• COBLDGNO ( type: esriFieldTypeString, alias: County Building No., length: 50 )
• PARENT_FACILITY ( type: esriFieldTypeString, alias: Parent Facility, length: 50 )
• BRAND ( type: esriFieldTypeString, alias: Brand, length: 255 )
• WARRANTY ( type: esriFieldTypeString, alias: Warranty, length: 255 )
• VOLT ( type: esriFieldTypeString, alias: Volt, length: 255 )
• AC_TYPE ( type: esriFieldTypeString, alias: AC Type, length: 25 , Coded Values: [Package Unit: Package Unit] , [Split System: Split System] , [Ductless: Ductless] , ...1 more... )
• PURCHDT ( type: esriFieldTypeDate, alias: Purchase Date, length: 8 )
• MODELNO ( type: esriFieldTypeString, alias: Model No., length: 255 )
• SERIALNO ( type: esriFieldTypeString, alias: Serial No., length: 255 )
• CREATED_USER ( type: esriFieldTypeString, alias: Created User, length: 255 )
• CREATED_DATE ( type: esriFieldTypeDate, alias: Created Date, length: 8 )
• LAST_EDITED_USER ( type: esriFieldTypeString, alias: Last Edited User, length: 255 )
• LAST_EDITED_DATE ( type: esriFieldTypeDate, alias: Last Edited Date, length: 8 )
• HOME_UNIT ( type: esriFieldTypeInteger, alias: Home Unit )
• ZIP ( type: esriFieldTypeString, alias: ZIP, length: 10 )
• GLOBALID ( type: esriFieldTypeGlobalID, alias: GLOBALID, length: 38 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

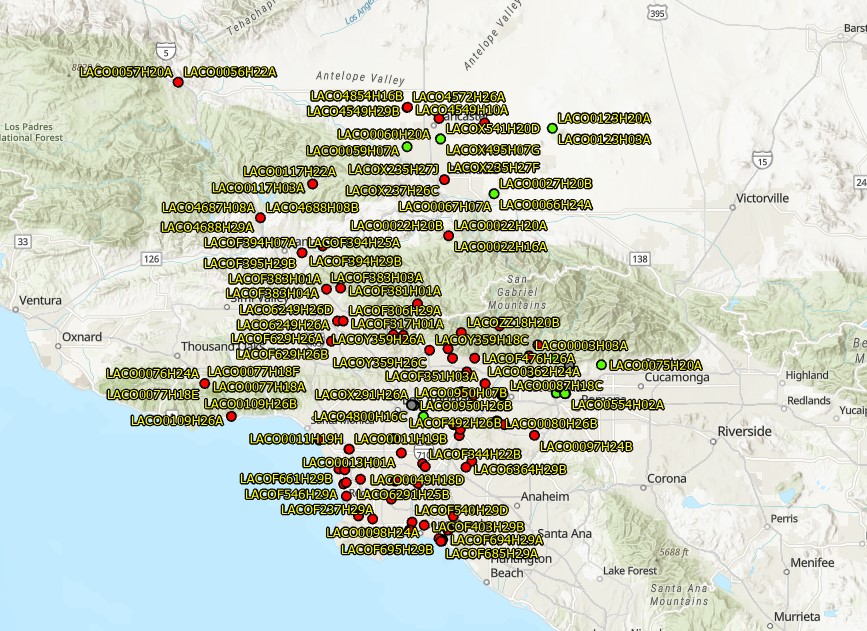

  Iteminfo   Thumbnail   Metadata
